Description

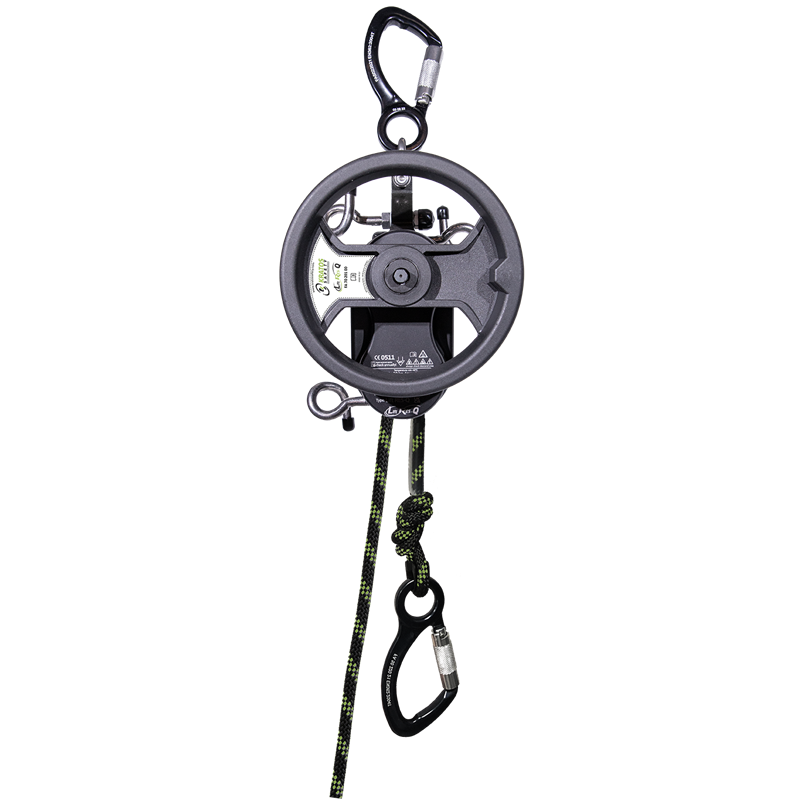

Lift Res-Q is the perfect device for lifting and rescue operations.
Made of aluminium alloy and high-strength steel and dia. 9.6 mm semi-static kernmantle rope assembled with the device.
Rope ends with double figure of 8 knots for connection with karabiner. Provided with 2 hooks ref. FA 50 220 21.
Controlled descent speed: 1 m to 1.5 m / sec (depending on weight), up to 225 kg.
Maximum descent height: 500 m.
Maximum lifting height: 500 m.
Usable with electric screwdriver: For high ascents.
Brake system: Automatic and redundant.
Maximum no. of users: 2 users – 225 kg.
Inspection: Once a year or every 6000 m of rope.
Available in 2 lengths: 20 m (FA 70 201 20), 40 m (FA 70 201 40).
For specific lengths, you need to associate the following references:
– FA 70 201 00: device only.
– FA 70 109 99: Kernmantle rope per meter.
– FA 70 109 98: Required length of rope with double “figure of 8” knots and automatic locking hook.
Compliance: EN 341:2011-1A, EN 1496:2007 B, EN 12841:2006 Type C (1 person).
